I thought I would start a topic where we can all post examples of  items furnished with the L-5. Along with posting the photos also include which aircraft registrations it applies to and any other info you may know about it.

Matt Anderson

[Matt Anderson]

Part No. 42G11966 Container Assembly – Signal Flare G.F.E. Model A-A used in aircraft 42-98610 and up. Listed in AN 01-50DB-4 Figure 45-20

Also known as Type A-5 it has six loops internally to hold six 37mm signal flare rounds. This was typically paired with the ANM-8 Pyrotechnic Pistol.  It was stored in 76-63073 Bag- Misc. Equipment which is on the back of the Observers Seat.

• This reply was modified 3 years, 2 months ago by Matt Anderson. Reason: Pic

[Matt Anderson]

Part No. 0161366 Holder – Flight Report (Type A -2) G.F.E. Model A-A Listed in AN 01-50DB-4 Figure 45-18 and Model B Figure 46-8

Also included in the folder is the Flight Report Packet which includes Form 1 and 1A with instructions on how to fill out.

• This reply was modified 3 years, 2 months ago by Matt Anderson.

[Matt Anderson]

Part No. 065169 Message Container G.F.E. Quantity 5 Model A-A Listed in AN 01-50DB-4 Figure 45-15 and Model B Figure 46-21

Also known as Bag – Drop Message Type A-1 used to drop messages to ground troops. It has a 2 oz. Lead weight to give it weight and a quarter once of kapok to help it float if it lands in water.



[Matt Anderson]

Part No. 36G4465 Mooring Kit Type D-1 G.F.E.  Quantity 1 For Model A-A listed in AN 01-50DB-4 Figure 45-12 for Model B Figure 46-17

• This reply was modified 3 years, 2 months ago by admin.
• This reply was modified 3 years, 2 months ago by Matt Anderson.

[Matt Anderson]

Part No. 42G11966 Container Assembly – Signal Flare G.F.E. Model A-A used in aircraft 42-98610 and up. Listed in AN 01-50DB-4 Figure 45-20

Also known as Type A-5 it has six loops internally to hold six 37mm signal flare rounds. This was typically paired with the ANM-8 Pyrotechnic Pistol.  It was stored in 76-63073 Bag- Misc. Equipment which is on the back of the Observers Seat.

[Geoff Hill]

G’day Matt,

Are you looking to buy these or sell? or

Are you posting to show us an example of what a Type A-1 & Type A5 look like?

Hilly

[Matt Anderson]

I am only posting original examples for reference for others who are looking for info to complete their restorations. I also encourage other members to post their original examples.

Matt

[Matt Anderson]

Type A-2 Fire Extinguisher

[Charles Rooks]

[Charles Rooks]

[Charles Rooks]

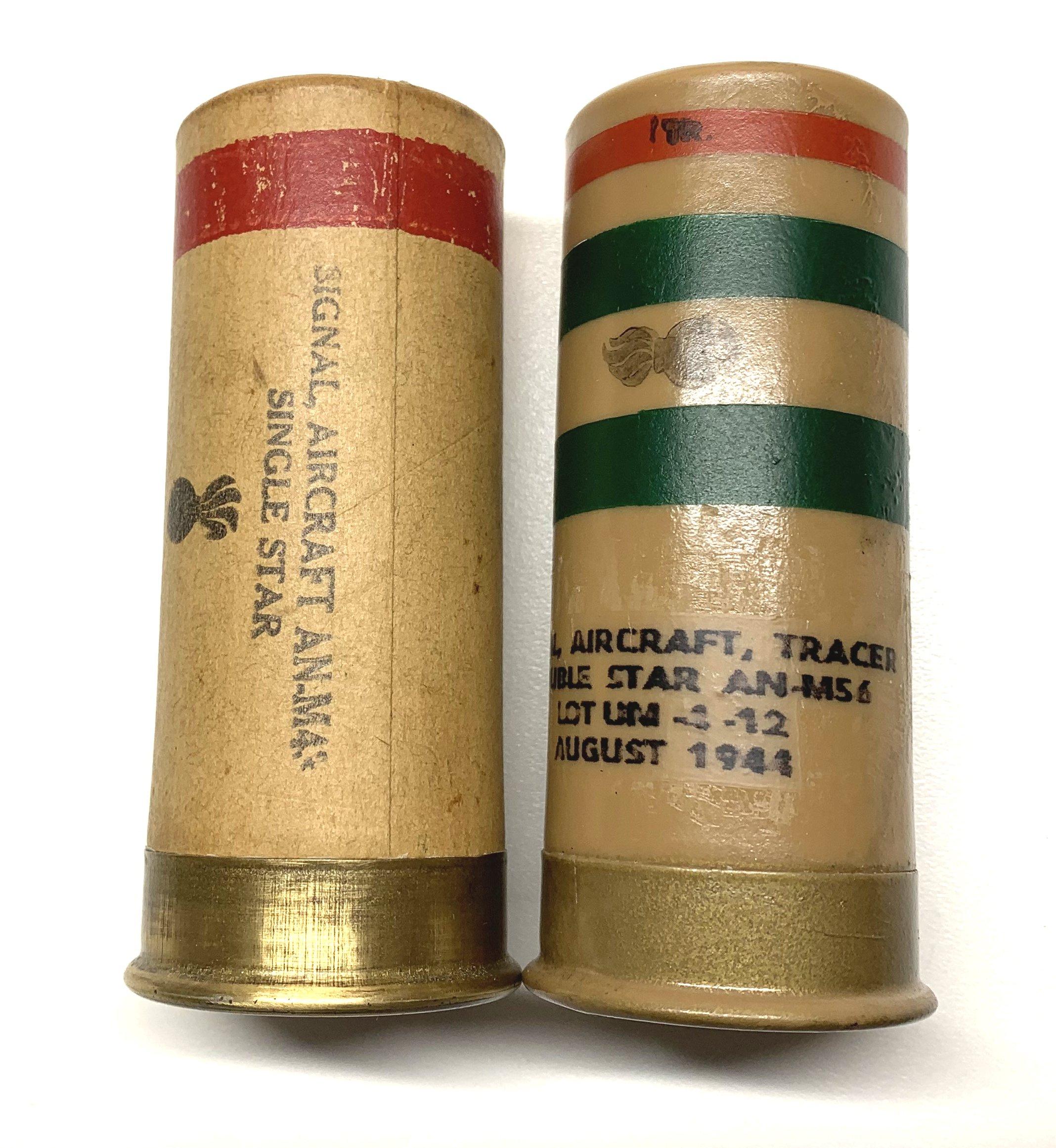

These flare reproductions are made by:

https://marshallsarsenal.com/

Marshall does reproduction WWII firearm items.  I have one of his flares and have ordered several more to place in the flare container bag that Matt mentioned previously.





[Matt Anderson]

Cool thanks for the info.

Matt

[Craig Cantwell]

Charles: Marshall must be doing those via special request. They aren’t listed on his website.



Craig

[Charles Rooks]

Craig-

His first batch was for the WWII project Bill Barclay’s company was working on.  Marshall will be glad to make some for others upon request.  I’ll nudge him to put examples on his website.

Charles



[Craig Cantwell]

Matt: In your quest for furnishings, would you happen to have run across a copy of the message bag drawing? I managed to find a bag recently, but would like to have several more for my project. I can work up a drawing to make some, but thought I’d put the question out here and a couple other boards before I sat down and started on one.

[Matt Anderson]

If you are referring to 76-63073 Bag Misc. Equipment which attaches to the back of the wooden observers seat then yes there is a factory drawing for it. It has the dimensions needed for each piece to make a complete bag and shows assembly.

[Craig Cantwell]

Matt: Actually looking for the drawing for the Drop bags. A friend has found the drawing for the later and larger version and is going to send a copy. He’s going to see if he can find the drawings for the smaller A-1 as well.
